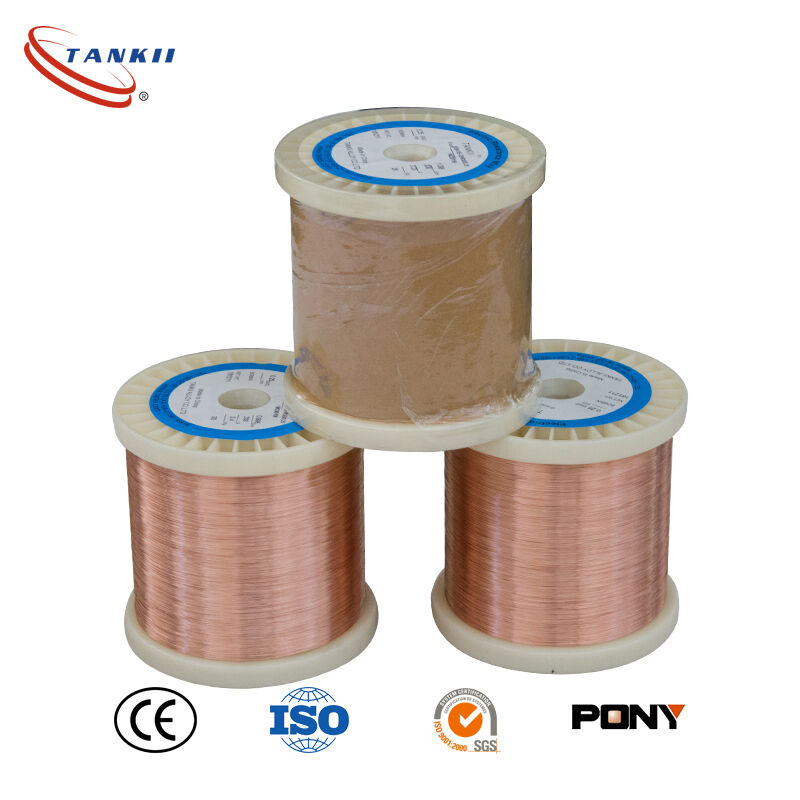

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

Produkt-Details

Herkunftsort: China

Markenname: Tankii

Zertifizierung: ISO 9001

Modellnummer: Manganin 47

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 30 kg

Preis: negotiate

Verpackung Informationen: Karton

Lieferzeit: 2-3 Wochen

Versorgungsmaterial-Fähigkeit: 5000 Tonnen pro Jahr

Erhalten Sie besten Preis
Kontaktieren Sie uns jetzt
Spezifikationen
Hervorheben:
Material:
Manganin 47
Modell:
6J12
Form:
Draht/Band/Folie
Dichte:
8.4g/cm3
Residensive:
47μΩ/cm
Verlängerung:
≥ 15%
TCR:
-3-+20(*10^﹣6/℃)
EMF vs. Cu μV/℃:
≤1
Material:
Manganin 47
Modell:
6J12
Form:
Draht/Band/Folie
Dichte:
8.4g/cm3
Residensive:
47μΩ/cm
Verlängerung:
≥ 15%
TCR:
-3-+20(*10^﹣6/℃)
EMF vs. Cu μV/℃:
≤1
Beschreibung
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
