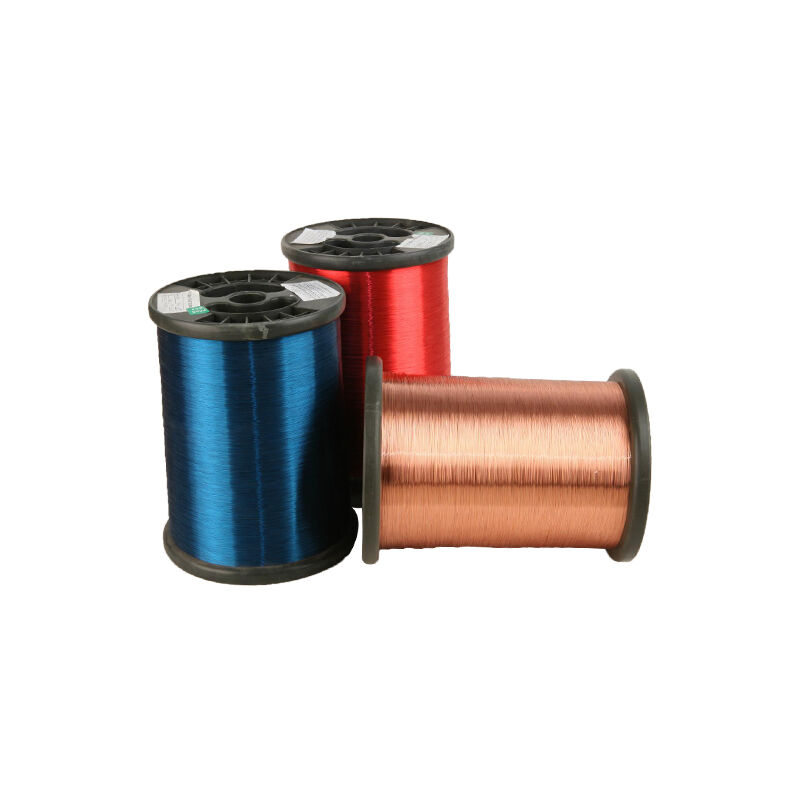

Enameled Karma NICR20AlSi Nickel Chromium Resistance Alloy Wire

Enamelled Karma NiCr20AlSi Resistance Alloy Wire

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size

Karma  Property

Distinctive features of Karma resistance wire

1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with Al and other elements, and thus achieved a precision resistance material with improved resistance temperature coefficient and heat electromotive force against copper. With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.

2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2, and the resistance temperature curve turns out to be almost a straight line within a wide temperature range.

Therefore, the temperature coefficient is set to be the average temperature coefficient between 23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may be adopted for the temperature coefficient.

3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and exhibits excellent stability over a period of many years.

4) If this is to be used as a precision resistance material, low temperature heat treatment is required to eliminate processing distortions just as in the case of Manganin wire CMW.
