Produkt-Details
Herkunftsort: China
Markenname: Tankii
Zertifizierung: Rohs, SGS
Modellnummer: KX
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: Verkäuflich
Preis: Negotiation
Verpackung Informationen: 500m/1000m pro Rolle mit filmumhülltem und Kartonplastikpaket. Als die Auftragsquantität und -Kunden
Lieferzeit: 7 Tage
Zahlungsbedingungen: T/T, Western Union, Paypal
Versorgungsmaterial-Fähigkeit: 1000Ton pro Jahr
Einzelteil: |
Gelbe und rote Glasfaser isolierte k-Art Thermoelement-Draht 2*0.711mm |
Anwendung: |
verwendet, um das Signal von einer Sonde auf Instrumentierung zu verlängern |
Isoliermaterial: |
Glasfaser |
Leiter Type: |
fest |
Standard: |
ANSI |
Vorbereitungs- und Anlaufzeit: |
5~7 Tage, nachdem die Ablagerung erhalten worden ist |
Art: |
K-Art |
Temperaturspanne: |
-200~1000 |
Einzelteil: |
Gelbe und rote Glasfaser isolierte k-Art Thermoelement-Draht 2*0.711mm |
Anwendung: |
verwendet, um das Signal von einer Sonde auf Instrumentierung zu verlängern |
Isoliermaterial: |
Glasfaser |
Leiter Type: |
fest |
Standard: |
ANSI |
Vorbereitungs- und Anlaufzeit: |
5~7 Tage, nachdem die Ablagerung erhalten worden ist |
Art: |
K-Art |
Temperaturspanne: |
-200~1000 |

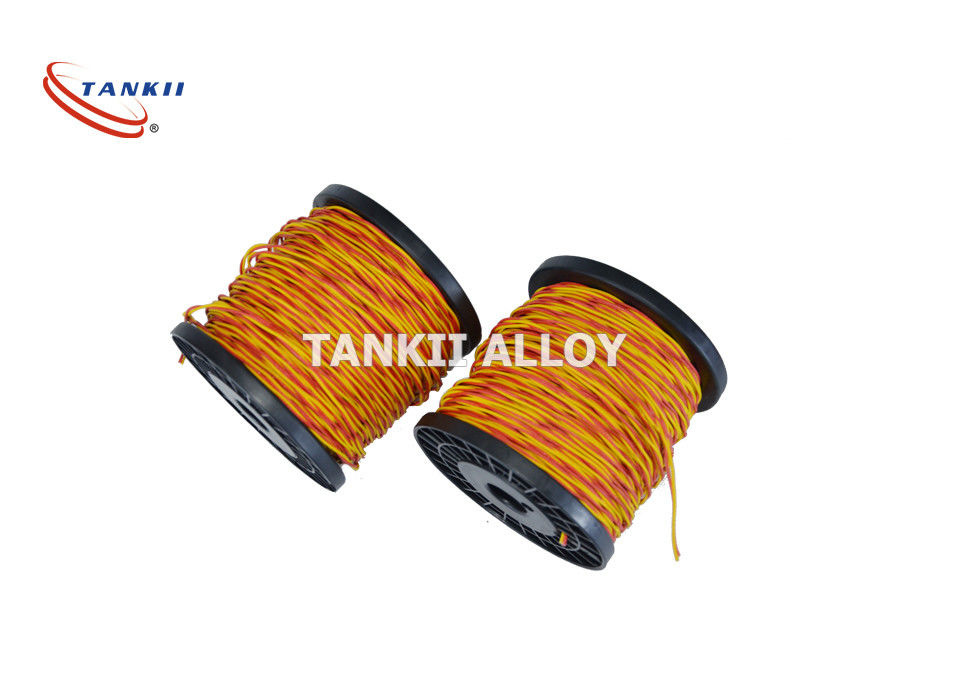

Yellow And Red Glass Fiber Insulated K Type Thermocouple Wire 2*0.711mm
Tankii alloy Thermocouple extension wire is used to extend the signal from a probe to instrumentation such as controllers or recording devices.
Often times, tankii multi pair thermocouple extension cables are preferred in these applications.
Extension wire is designated by an "X" or "C" after the tankii thermocouple type – i.e., EX, JX, KX, SC, TX.
Multi/Cable offers a full line of thermocouple cable & wire in standard limits of error & special limits of error. Thermocouple alloy wires are available in solid or stranded configurations.
Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
Yellow And Red Glass Fiber Insulated K Type Thermocouple Wire 2*0.711mm
Properties of insulation materials
| Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
International Color code:
| ASTM | (American Society for Testing and Materials) E 230 |
| ANSI | (American National Standard Institute) MC 96.1 |
| IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
| BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
| NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
| GOST | (Unification of the Russian Specifications) 3044 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 ~15 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
